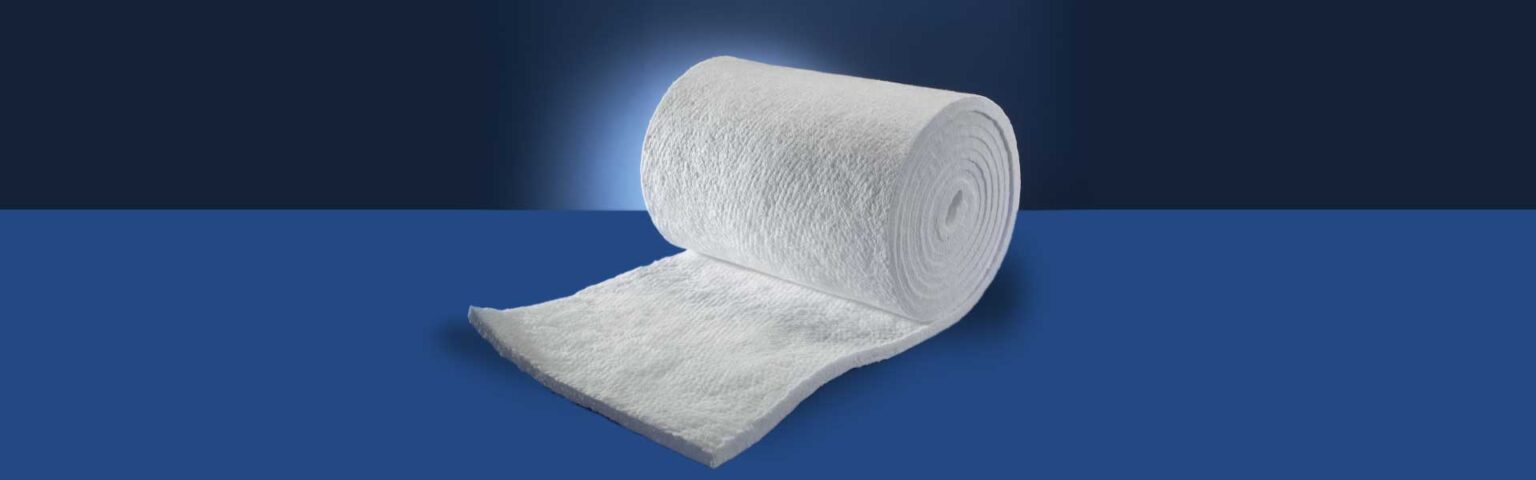

Ceramic Fiber Blanket

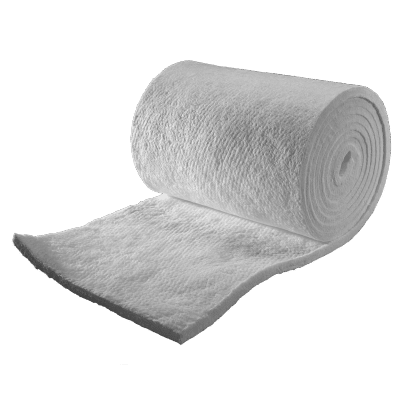

Ceramic blankets are Fireproof, insulating and flexible products that the raw material of this product is bulk ceramic fibers . These fibers produced with flexible and long fibers without using Adhesive Or any other binder. just by creating internal mechanical connections (needlework and sewing) in different thicknesses and densities. Ceramic blankets with light weight and high thermal durability are highly resistant to hot air currents inside the furnace.
Methods of Ceramic Fiber Manufacturing
Spining Method
Spinning is a procedure of manufacturing chemistry fiber, after some macromolecular compound is made to colloidal solution or is fused into melt, extrudes by spinning nozzle pore the process that forms fiber. The length of the fibers obtained from the melt is between 100-300 mm and the diameter is 3 to 5 microns. Lifespan And high durability and tensile strength are the characteristics of this production method.
Blowing Method
ceramic fibers sprayed with a lubricant. then piled on a belt conveyor to form a laminar structure of ceramic fibers. The fibers in this method have a length of 50-100 microns and a diameter of 3-5 mm.
Classification Temperature
HZ – High Zirconia : 1450
HA – High Alumina : 1400
STD – Standard : 1260
Features and characteristics of ceramic blanket
| Features | ||
| Good thermal and acoustic insulation | ||
| High resistance to heat shock | ||
| High tensile strength | ||
| High heat tolerance | ||
| Contains no Binder & Asbestos | ||
| Easy to Cut and Shape | ||
| Resistant to chemical corrosion and hot air flow | ||
| Applications | ||
| Continuous, Tunnel and Shuttle Kilns insulation | ||
| Covering casting ladles and insulating precision casting molds | ||
| Tube Seals, Gaskets and Expansion Joints | ||
| High Temperature Pipe, Boiler, Duct and Turbine Insulation | ||
| Insulation around the industrial burners | ||
جدول پتوی سرامیکی
Ceramic Fiber Blanket
| Description | STD BOARD | HP BOARD | HA BOARD | HZ BOARD |
| Classification Temperature (℃ ) | 1260 | 1260 | 1350 | 1430 |
| Color | White | White | White | White |
| Density (kg/m³) | 250/300/360 | 250/300/360 | 300/360 | 300/360 |
| Modules of Rupture (MPa) | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.3 |
| Compressive Strength (MPa, 10% relative deformation) | 0.15/0.25/0.3 | 0.25/0.3 | 0.25/0.3 | 0.25/0.3 |
| Loss of Ignition (%) | ≤6 | ≤6 | ≤6 | ≤6 |
| Permanent Linear Shrinkage (%) | 1000℃ x 24h ≤3.0 | 1100℃ x 24h ≤3.0 | 1200℃ x 24h ≤3.5 | 1350℃ x 24h ≤3.5 |
| Thermal Conductivity (W/m·K) | ||||
| 400℃ | 0.08 | 0.07 | 0.07 | 0.07 |
| 600℃ | 0.11 | 0.10 | 0.10 | 0.09 |
| 800℃ | 0.14 | 0.14 | 0.13 | 0.13 |
| 1000℃ | 0.19 | 0.19 | 0.19 | 0.18 |
